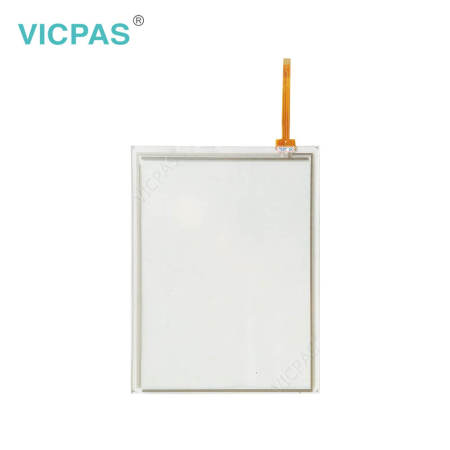

DMC TP-3037S1 HMI Panel Glass Replacement

TP-3037S1 Touchscreen system with strong popularity in industrial applications. A highly reliable TP-3037S1 touch panel that has been used in a wide range of applications for many years. The TP-3037S1 Touch Screen Panel Glass resistive film method is a system used in many industrial applications, especially in factory automation (FA). It detects the position by measuring the electrical voltage generated when two electrically conductive films (ITO: Indium Tin Oxide) touch. The position is detected by measuring the voltage generated when the TP-3037S1 Touch Digitizer Glass conductive film (ITO: Indium Tin Oxide) is touched. It is sometimes referred to as a "pressure-sensitive" system. It has advantages such as stability, positioning accuracy, ease of installation, and low cost.

TP-3037S1 touch membrane size: 8.0 inch, other general size is 3.0'' to 22''. TP-3037S1 touch screen adopt to panel display device. TP-3037S1 touchscreen temperature operating range: -10°C ~ 60°C. TP-3037S1 touch digitizer glass linearity error:< 1.5%. TP-3037S1 touch screen hmi response speed: < 10ms. TP-3037S1 touch screen monitor operation system including: Linux / DOS / Windows ME/95/98 / NT4.0/XP/2000/Mac OS etc. TP-3037S1 touch panel temperature storage range: -20°C ~ 70°C. TP-3037S1 touch screen display current: 5mA~25mA.
