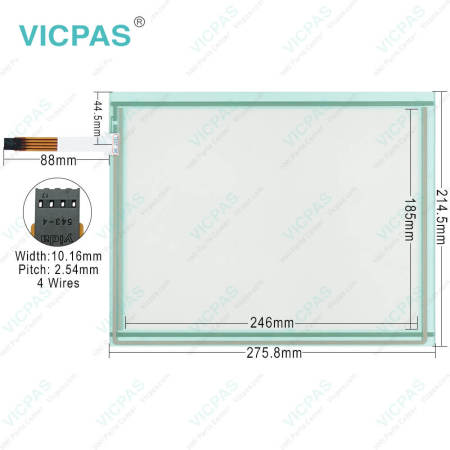

ESA Terminals HMI LTP-121F-04 Touch Panel Glass Repair
ESA Touch Screen Terminals LTP-121F-04 Touch Panel Replacement
Order each part separately is available
LTP-121F-04 256-Color TFT LCD 800 x 600 (12.1”) Touch Screen Terminal Repair Kit
LTP-121F-04 operator terminals Main characteristics (modeldependant)::
•High resolution graphicdisplays
•Alarms, passwords, recipes
•Use of Windows® fonts)
•Importation of graphicimages in any format
•Moving graphic objects
•Double driver moves databetween two devices
•Integrated Profibus-DP andCAN
ESA LTP-121F-04 HMI function allows variables and translations to be exported into filesthat can easily be edited using Excel or a text-editor. Once edited, thefile can be re-imported and VTWIN will automatically associate thetranslations, while the variables will be immediately available to be usedto create new project components
VICPAS supply ESA Touchscreen Terminal LTP-121F-04 Touch Panel with 365 days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the ESA LTP-121F-04 HMI Parts.
| Brand: | ESA |
| Resolution: | 800x600 |
| Backlighting: | CCFL |
| Warranty: | 6-Months Warranty |
| Product Line: | Touch Terminal |
| Display Type: | Graphic LCD TFT |
| Touch Screen Matrix: | 50x40 (16x15) |
| Display area size: | 9.68x7.28 |
| Size: | 12.1" |
| Part Number: | LTP-121F-04 |
Related ESA VT595 Part No. :
| ESA VT595 | Description | Inventory status |
| VT595CE1T100 | ESA Terminals HMI VT595CE 1T100 Touch Screen Replacement | In Stock |
| VT595CE0T100 | ESA Terminals HMI VT595CE 0T100 Touch Panel Replacement | In Stock |
| VT595W0PTDP | ESA Terminals HMI VT595W VT595W0PTDP Touch Panel Repair | In Stock |
| VT595W0PTDP | ESA Terminals HMI VT595W VT595W0PTDP Touchscreen Repair | In Stock |
| VT595W0PTCN | ESA Terminals HMI VT595W VT595W0PTCN Touch Screen | In Stock |
| VT595WAPT00 | ESA Terminals HMI VT595W VT595WAPT00 Touch Panel | In Stock |
| VT595WOPTDP | ESA Terminals VT595W VT595WOPTDP HMI Panel Glass Repair | In Stock |
| ESA VT TOUCH | Description | Inventory status |
ESA Operator Panel HMI Manuals PDF Download:
FAQ:
Question: How to operate the LTP-121F-04 Terminal with touchscreen?
Answer:To be able to carry out a change in any editable variable field you musttouch the chosen field on the display and a page appears offering theneeded to modify the field.
Question: What is the LTP-121F-04 Termination of CAN line?
Answer:The VT in question integratesthe termination resistances of the serial line (typically 120 ohms)which can be inserted by means of a jumper (preset on 1-2, line not terminated).To activate the termination:
• Make sure the device is not connected to the power supply.
• Remove the cover.
• Identify the jumper unit J2.
• Position the jumper between pins 2 and 3 (line terminated).
• Replace the back cover.
• Reconnect the power supply.
Question: What is ESA LTP-121F-04 Touch Screen and Protective Flim HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Common misspellings:
LT-121F-04LTP-121-04
LTP-12F1-04
LTP-12lF-04
LTP-121F-004
