Panasonic AUR01060 G3 Controller Keypad LCD Cover

Panasonic AUR01060 G3 Controller Keypad LCD Cover

Panasonic AUR01060 G3 Controller Keypad LCD Cover
Panasonic AUR01060 G3 Controller Keypad LCD CoverPanasonic AUR01060 G3 Controller Keypad LCD CoverPanasonic AUR01060 G3 Controller Keypad LCD CoverPanasonic AUR01060 G3 Controller Keypad LCD CoverPanasonic AUR01060 G3 Controller Keypad LCD Cover
CategoriesPanasonic Teach Pendant
BrandVICPAS
ModelAUR01060
Warranty365 Days
Shipping2-4 workdays
BrandPanasonic
ModelPanasonic G3 Controller AUR01060
SupplyTeach Pendant Control Replacement Parts
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, T/T ,Credit Card, Western Union
Download
Update TimeNov 21,2024
Detail Information

Panasonic G3 Teach Pendant Controller AUR01060 keypad switch LCD display Plastic case cover

Order each part separately is available

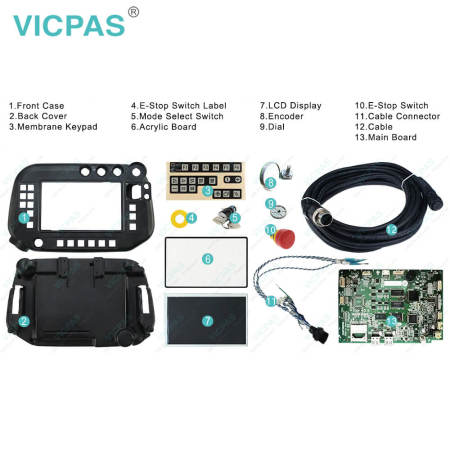

Panasonic G3 Teach Pendant Controller AUR01060 keypad switch, LCD display, protective case cover, Acrylic Board, Mode Select Switch, E-Stop Switch Label replacement

Panasonic robots of the TA/TB series and the new G3 Robot AUR01060 Controller Membrane keypad keyboard lcd display screen plastic case cover body HMI meets customer request for advance robotic application. Windows CE™ based G3 controller keyboard membrane lcd panel plastic shell HMI provides icon based user-friendly programming with wide 7"colour display and jog dial. Panasonic AUR01060 Controller has access to the network by Ethernet, which enables advanced production management and quality control.

VICPAS supply Panasonic AUR01060 Teach Pendant G3 Controller spare part to replace, make the teach pendant running. We provide a 1-year warranty of the most product, which include most of AUR01060 membrane keypad, AUR01060 LCD display, Mode Select Switch, E-Stop Switch Label, Acrylic Board and AUR01060 protective case shell housing.


Panasonic G3 Robot Teach Pendant AUR01060 Feature:
 7 inch TFT colour LCD
 Graphical User Interface-display with icons
 Eight function keys, enabling same action with less key strokes during teaching
 Jog dial
 2 x USB 2.0
 SD memory card slot (SD, SDHC)



Specifications:

The table below describes the parameters of the Panasonic Robot G3 AUR01060 Teach Pendant.

Model Number : AUR01060
Product Line: Panasonic G3
Display Type: TFT color graphic LCD
Warranty: 1-Year Warranty
Display Size: 7" colour LCD
Memory in TP: IC memory
SD memory card slot: 1 slot
USB 2.0 port: 2


Panasonic Teach Pendant Manuals PDF Download:

  • Panasonic TM-TL(GⅢ)E Manual
  • Panasonic AUR01060 Operating Instructions

  • FAQ:

    Question: What is the price of Panasonic Robot G3 AUR01060 membrane keypad with case(shell), LCD Display?

    Answer: Submit a fast quote, send VICPAS an email for best price.


    Question: How to connecting Panasonic Robot G3 teach pendant?

    Answer:
    Note: Do not bend the TP cable near the connector and connect it to the controller. Otherwise, connecting pins may be damaged.
    Connect the TP cable to the connector of the teach pendant.
    Match the match-marks (concave) at the connector of the TP cable with the match-marks (convex) at the connector of the teach pendant, and then fasten the cable ring.
    Note:
    When fastening the cable ring
    Do not fasten the ring tight at one time and forcedly. Turn the ring a little and push the cable in and repeat the procedure until the ring is set completely.
    Fastening the ring forcedly may cause damage or malfunction of the machine.
    How to connecting Panasonic Robot G3 teach pendant?
