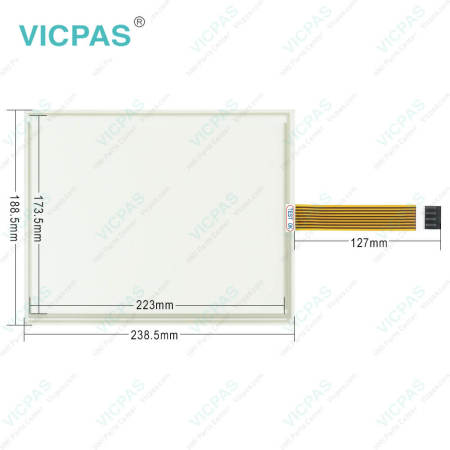

B&R 5PP120.1043-K03 HMI Touch Glass

B&R 5PP120.1043-K03 HMI Touch Glass

B&R 5PP120.1043-K03 HMI Touch Glass
B&R 5PP120.1043-K03 HMI Touch GlassB&R 5PP120.1043-K03 HMI Touch GlassB&R 5PP120.1043-K03 HMI Touch Glass
CategoriesPower Panel 100/200
BrandVICPAS
Model5PP120.1043-K03
BrandB&R
Size10.4 inch
Warranty1 Year VICPAS Warranty
ModelB&R Power Panel 100 5PP120.1043-K03
ShippingDHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, T/T, PayPal, Credit Card
Update TimeDec 25,2024
Detail Information

B&R Power Panel 100 5PP120.1043-K03 Touch Panel Repair Replacement


Power Panel 100 5PP120.1043-K03 Touchscreen Glass

Depending on the variant, the devices have a 5.7" QVGA touch screen available in color or black/white, a 10.4" VGA, a 12.1" SVGA, or a 15" XGA touch screen in color. In addition, there re horizontally or vertically formatted devices available (numeric and alphanumeric keys, with/without legend strips) for all display sizes (exception: 12.1" SVGA - only available without keys and with touch screen).


The 3-pin socket required for the supply voltage connection is not included in delivery. This can be ordered from B&R using the model number 0TB103.9 (screw clamps) or 0TB103.91 (cage clamps). The cable required for the connection must be supplied by the customer. The supply voltage is internally protected so that the device cannot be damaged if there is an overload or if the voltage supply is connected incorrectly. Pin assignments can be found either in the following table or printed on the Power Panel plate or device label.




Specifications:

The table below describes the parameters of the 5PP120.1043-K03 Power Panel 100 Touchscreen Panel.

Part Number : 5PP120.1043-K03
Product Line: Power Panel 100
Screen diagonal: 10.4 in
Warranty: 365 Days Warranty
Input Power: 24 VDC
Display Type: TFT color
Mounting position: Vertical
Input Type: Touchscreen
Serial interface Type: RS232
Storage: -20 to 70°C


Related Power Panel 100 Series Part No. :

Power Panel 100 Description Inventory status
4PP120.0571-01 B&R Power Panel 100 Touch Screen Panel Glass Protective Film In Stock
4PP120.0571-21 PP100 B and R Touch Panel Glass Front Overlay Repair Available Now
4PP120.0571-A5 B&R Power Panel 100 Touch Screen Panel Repair In Stock
4PP120.0571-K01 B and R Power Panel 100 Touch Digitizer Replacement In Stock
4PP120.0571-K03 Power Panel 100 B&R HMI Touch Screen Organizer In Stock
4PP120.0571-K07 B and R Power Panel 100 Touch Panel Glass Repair In Stock
4PP151.0571-01 PP100 B&R Membrane Keypad Keyboard Replacement Available Now
4PP151.0571-21 Power Panel 100 B&R Membrane Keypad Switch In Stock
4PP152.0571-01 B and R Power Panel 100 Operator Panel Keypad Available Now
4PP152.0571-21 B&R Power Panel 100 Keypad Membrane Repair Replacement In Stock
4PP120.0653-K01 B&R Power Panel 100 Touch Screen Panel Glass Protective Film In Stock
4PP120.1043-31 PP100 B and R Touch Panel Glass Front Overlay Terminal Keypad Available Now
B and R PP100 Description Inventory status

FAQ:

Question: How can the Automation Panel B&R 5PP120.1043-K03 service life of the backlight be extended?

Answer:
• By setting the display brightness to the lowest value that is still comfortable for the eyes
• By using dark images
• By reducing the brightness by 50%, which can result in an approximately 50% increase in the half-brightness time


Question: How to clean the B&R Power Panel 100 5PP120.1043-K03 Terminal Devices?

Answer:
How to clean the B&R Power Panel 100 5PP120.1043-K03 Terminal Devices?
This device should be cleaned with a moist cloth. The cloth should be moistened with water and detergent, a screen cleaning agent or alcohol (ethanol). The cleaning agent should be applied to the cloth beforehand, not sprayed directly on the device! Aggressive solvents, chemicals, scouring agents, pressurized air or steam jets should never be used.
How to clean the B&R Power Panel 100 5PP120.1043-K03 Terminal Devices?

Common misspellings:

5P120.1043-K03

PP120.1043-K03

5PPl20.1043-K03

5PP120.1o43-K03

5PP120.1043-KO3
