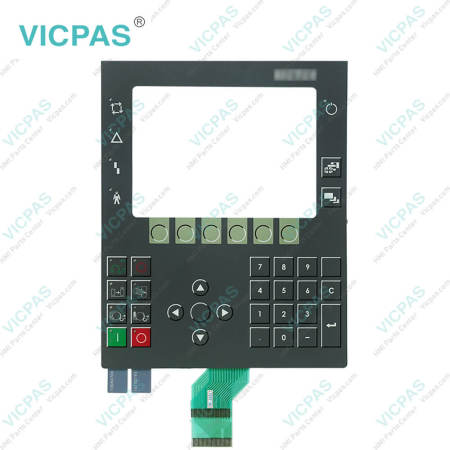

PP400 4PP450.0571-K13 B&R Membrane Keypad

Name: PP400 4PP450.0571-K13 B&R Membrane Keypad
Brand: VICPAS
SKU: 18295812
Rating: 4.75 (10 reviews)

Categories	Power Panel 400
Brand	VICPAS
Model	4PP450.0571-K13
Touch screen panel type	Resistance touch screen
Size	15 inch
Brand	B&R
Warranty	1 Year VICPAS Warranty
Model	B&R Power Panel 400 4PP450.0571-K13
Shipping	DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
FOB port	Guangzhou, Shenzhen, Hongkong
Terms of Payment	Western Union, T/T, PayPal, Credit Card
Download
Update Time	Nov 22,2024

Contact Now

Favorites

Detail Information

B&R Power Panel 400 4PP450.0571-K13 Membrane Keypad Repair Replacement

Power Panel 400 4PP450.0571-K13 Keyboard Membrane

For the Power Panel 300 and the Power Panel 400, B&R also implements the proven product lines of BIOS devices (Power Panel 300) and embedded devices (Power Panel 300 and Power Panel 400). Power Panel 400 4PP450.0571-K13 devieces can be delivered with the Windows XP embedded and Windows CE operating systems. They cover the entire range of PC systems, from simple thin clients and web terminals to full SCADA systems. Power Panel 300 and Power Panel 400 devices handle the automation of complete systems. This provides integrated control functionality and drive technology together with modular interfaces for connecting peripheral devices for the process. Models ranging from 5.7" QVGA to 15" XGA meet all requirements for series machine manufacturing. There is now a new variant that combines a 5.7" diagonal with a VGA TFT display. It allows a great deal of information to be displayed in a small amount of space and images can be shown is detail. Entries are made using either the touch screen or the function keys.

The visualization project runs on the Power Panel 400. Serial RS232 or Ethernet TCP/IP provides the communication to the controller system. Flexible programming with frame drivers or Ethernet socket services allows a connection to be made to any control system. I/O peripherals and drives are connected to the controller.

The following Power Panel Automation Runtime device software and firmware can be updated:
• BIOS
• MTCX firmware

Contact Best Price

Specifications:

The table below describes the parameters of the 4PP450.0571-K13 Power Panel 400 Touchscreen Panel Membrane Keypad.

Part Number :	4PP450.0571-K13
Product Line:	Power Panel 400
Screen diagonal	10.4 in
Warranty:	365 Days Warranty
Input Power	24 VDC

Display Type:	TFT color
Mounting position:	Vertical
Input Type:	Keypad
Serial interface Type:	RS232
Storage	-20 to 70°C

Related B&R Power Panel 400 Series Part No. :

B&R Power Panel 400	Description	Inventory status
4PP481-1505-75	B&R Power Panel 400 Touch Screen Panel Glass Repair	In Stock
4PP480-1505-K02	Power Panel 400 Touch Panel Membrane Keypad Keyboard	Available Now
4PP420-1505-K05	B and R Power Panel 400 Touch Digitizer Replacement	In Stock
4PP420-1505-K04	Power Panel 400 HMI Touch Screen Organizer Protective Film	In Stock
4PP450-1043-K05	Power Panel 400 HMI Touch Panel Glass Repair	In Stock
4PP450-1043-K01	Power Panel 400 B&R HMI Touch Screen Panel	Available Now
4PP420-1043-K49	Power Panel 400 B&R Overlay Touch Screen Monitor	In Stock
4PP420-1043-K02	Power Panel 400 B&R HMI Touch Screen Panel Glass	Available Now
4PP420-1043-K45	B&R Power Panel 400 Touch Digitizer Glass	In Stock
4PP420-1043-K63	B&R Power Panel 400 HMI Touch Screen Replacement	In Stock
4PP420-1043-K60	B&R Power Panel 400 Touch Screen Panel Repair Kit	In Stock
4PP420-1043-K59	B and R Power Panel 400 Touch Screen Hmi Touch Membrane	Available Now
B and R PP400	Description	Inventory status

B&R Power Panel 400 Manuals PDF Download:

B&R Power Panel 400 User's Manual

FAQ:

Question:How to upgrade B&R Power Panel 400 4PP450.0571-K13 MTCX Firmware (MTCX FPGA, MTCX PX32)?

Answer: A current MTCX Firmware (MTCX FPGA and MTCX PX32) upgrade can be downloaded directly from the service portal on the B&R homepage (www.br-automation.com).
To carry out a firmware upgrade, the following steps should be taken:
• Create bootable media.
• Copy the contents of the *.zip file to the bootable media. If the B&R upgrade was already added when the bootable media was created using the B&R Embedded OS Installer, then this step is not necessary.
• Connect the bootable media to the Power Panel and reboot the device.
• A boot menu with the following options is displayed after booting:
How to upgrade B&R Power Panel 400 4PP450.0571-K13 MTCX Firmware (MTCX FPGA, MTCX PX32)?
Concerning item 1:
The MTCX Firmware FPGA and PX32 is automatically updated (default after 5 sec).

Concerning item 2:
Returns to the shell (MS-DOS).
• Select the desired action.
• Remove the bootable media and reboot the device (only after a successful update!).

Question:How to creating a B&R Power Panel DOS boot diskette in 4PP450.0571-K13 Windows XP?

Answer:
• Place an empty 1.44 MB HD diskette in the disk drive.
• Open Windows Explorer.
• Right-click on the 3?" floppy icon and select "Format...".
How to creating a B&R Power Panel DOS boot diskette in 4PP450.0571-K13 Windows XP?
• Then select the checkbox "Create an MS-DOS startup disk", press "Start" and acknowledge the warning message with "OK".

After creating the startup disk, some of the files must be deleted because of the size of the update. When doing this, all files (hidden, system files, etc.) must be shown on the diskette. In Explorer, go to the Tools menu, select Folder Options... and open the View tab. Now deactivate the option Hide protected operating system files (Recommended) (activated by default) and activate the option Show hidden files and folders.
How to creating a B&R Power Panel DOS boot diskette in 4PP450.0571-K13 Windows XP?

Now all files (marked) except Command.com, IO.sys and MSDOS.sys can be deleted.

Common misspellings:

4PP450.071-K13

4P450.0571-K13

4PP450.057l-K13

4PP45O.0571-K13

4PP450.0571--K13
