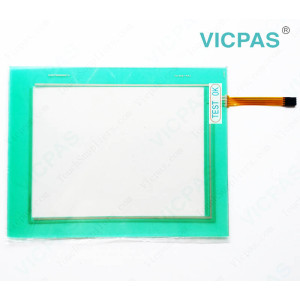

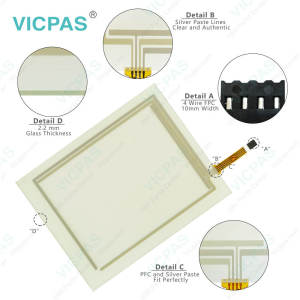

ESA Terminals HMI VT575 VT575WAPS00 Touch Screen Replacement
ESA Touch Screen Front Overlay VT575W APS00 Touch Panel Replacement
Order each part separately is available
VT575WAPS00 256-Color STN LCD 640 x 480 (7.5”) Touch Screen Front Overlay Terminal Repair Kit
VT575W VT operator terminals ensure maximum availability of drivers and a full coverage of the PLC market and of otherdevices, such as drives, inverters and temperature controllers, including:
•Profibus-DP at 12 Mbit/s (addressing up to 127 terminals)
•Interbus-S at 500 Kbit/s (addressing up to 127 terminals)
•CAN (through built-in port or external adapter)
•Modbus in master and slave mode
•TCP/IP protocol support
ESA VT575W Main characteristics (modeldependant): High value solution formany applications Alarms, passwords, recipes Use of Windows® fonts Importation of graphicimages in any format Moving graphic objects Serial printing Integrated Profibus-DP andCAN Integrated Ethernet 10/100
VICPAS supply ESA Touchscreen Terminal VT575W Protective Film Touch Panel with 365 days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the ESA VT575WAPS00 HMI Parts.
| Brand: | ESA |
| Resolution: | 640x480 |
| ASP serial port1: | RS232 (8 pin) |
| Warranty: | 6-Months Warranty |
| Product Line: | Touch Terminal |
| Display Type: | Graphic LCD TFT |
| Touch Screen Matrix: | 40x30 (16x16) |
| Display area size: | 6.22x4.64 |
| Size: | 7.5" |
| Part Number: | VT575WAPS00 |
Related ESA VT575 Part No. :
| ESA VT575 | Description | Inventory status |
| VT575WAPS00 | ESA Terminals HMI VT575 VT575WAPS00 Touch Screen Replacement | In Stock |
| VT575W0PSCN | ESA Terminals HMI VT575 VT575W0PSCN Touch Panel Replacement | In Stock |
| VT575W0PSDP | ESA Terminals HMI VT575 VT575W0PSDP Touch Screen Replacement | In Stock |
| VT575W0PSET | ESA Terminals HMI VT575 VT575W0PSET Touchscreen Replacement | In Stock |
| VT575CE1S100 | ESA Terminals HMI VT575CE 1S100 Touch Panel Replacement | In Stock |
| VT575CE0S100 | ESA Terminals HMI VT575CE 0S100 Touchscreen Replacement | In Stock |
| ESA VT TOUCH | Description | Inventory status |
ESA VT575W Operator Panel HMI Manuals PDF Download:
FAQ:
Question: How to operate the VT575W Terminal with Front Overlay touchscreen?
Answer:To be able to carry out a change in any editable variable field you musttouch the chosen field on the display and a page appears offering theneeded to modify the field.
Question: What is the VT575W Termination of CAN line?
Answer:The VT in question integratesthe termination resistances of the serial line (typically 120 ohms)which can be inserted by means of a jumper (preset on 1-2, line not terminated).To activate the termination:
• Make sure the device is not connected to the power supply.
• Remove the cover.
• Identify the jumper unit J2.
• Position the jumper between pins 2 and 3 (line terminated).
• Replace the back cover.
• Reconnect the power supply.
Question: What is ESA VT575W Touch Screen and Protective Film HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Common misspellings:
V575WAPS00VT75WAPS00
VT55WAPS00
VT57WAPS00
