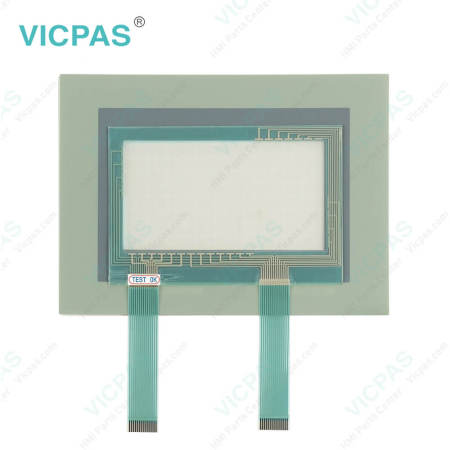

ESA Terminals HMI VT555W AP0DP Touch Screen Replacement
ESA Touch Screen Front Overlay VT555W VT555WAP0DP Touch Panel Replacement
Order each part separately is available
VT555W VT operator terminals ensure maximum availability of drivers and a full coverage of the PLC market and of otherdevices, such as drives, inverters and temperature controllers, including:
•Profibus-DP at 12 Mbit/s (addressing up to 127 terminals)
•Interbus-S at 500 Kbit/s (addressing up to 127 terminals)
•CAN (through built-in port or external adapter)
•Modbus in master and slave mode
•TCP/IP protocol support
ESA VT555W Main characteristics (modeldependant): High value solution formany applications Alarms, passwords, recipes Use of Windows® fonts Importation of graphicimages in any format Moving graphic objects Serial printing Integrated Profibus-DP andCAN Integrated Ethernet 10/100
VICPAS supply ESA Touchscreen Terminal VT555W Touch Panel Protective Film with 365 days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the ESA VT555WAP0DP HMI Parts.
| Brand: | ESA |
| Resolution: | 240 x 128 |
| ASP serial port1: | RS232 (8 pin) |
| Warranty: | 6-Months Warranty |
| Product Line: | Touch Terminal |
| Display Type: | Graphic LCD TFT |
| Touch Screen Matrix: | 20x8 |
| Display area size: | 123 x 68 (mm) |
| Size: | 5.5" |
| Part Number: | VT555WAP0DP |
Related ESA VT555W Part No. :
| ESA VT555W | Description | Inventory status |
| VT555WA0000 | ESA Terminals HMI VT555W 000CN Touchscreen Replacement | In Stock |
| VT555WAP0DP | ESA Terminals HMI VT555W AP0DP Touch Screen Replacement | In Stock |
| VT555WAP000 | ESA Terminals HMI VT555W AP000 Touch Panel Replacement | In Stock |
| VT555WA0000 | ESA Terminals HMI VT555W A0000 Touchscreen Replacement | In Stock |
| ESA VT TEXT | Description | Inventory status |
ESA VT555W Operator Panel HMI Manuals PDF Download:
FAQ:
Question: How to operate the VT555W Terminal with Front Overlay touchscreen?
Answer:To be able to carry out a change in any editable variable field you musttouch the chosen field on the display and a page appears offering theneeded to modify the field.
Question: What is the VT555W Termination of CAN line?
Answer:The VT in question integratesthe termination resistances of the serial line (typically 120 ohms)which can be inserted by means of a jumper (preset on 1-2, line not terminated).To activate the termination:
• Make sure the device is not connected to the power supply.
• Remove the cover.
• Identify the jumper unit J2.
• Position the jumper between pins 2 and 3 (line terminated).
• Replace the back cover.
• Reconnect the power supply.
Question: What is ESA VT555W Touch Screen and Protective Film HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Common misspellings:
V555WAP0DPVT55WAP0DP
VT55WAP0DP
VT55WAP0DP
VT555AP0DP
