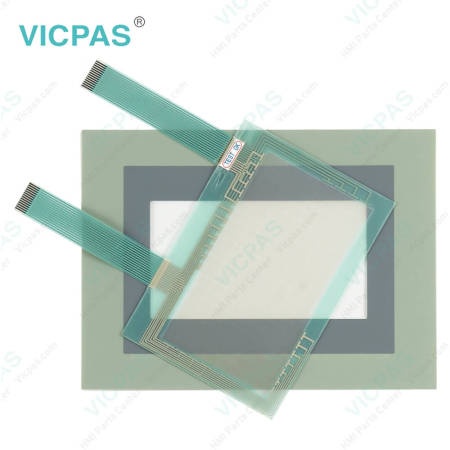

ESA Terminals HMI VT555W AP000 Touch Panel Replacement
![ESA Terminals HMI VT555W AP000 Touch Panel Replacement](https://icdn.tradew.com/file/201606/1569362/jpg/7621617.jpg?x-oss-process=image/resize,m_pad,l_450/quality,Q_90)
![ESA Terminals HMI VT555W AP000 Touch Panel Replacement](https://icdn.tradew.com/file/201606/1569362/jpg/7621617.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![ESA Terminals HMI VT555W AP000 Touch Panel Replacement](https://icdn.tradew.com/file/201606/1569362/jpg/7621615.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![ESA Terminals HMI VT555W AP000 Touch Panel Replacement](https://icdn.tradew.com/file/201606/1569362/jpg/7621614.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![ESA Terminals HMI VT555W AP000 Touch Panel Replacement](https://icdn.tradew.com/file/201606/1569362/jpg/7621611.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![ESA Terminals HMI VT555W AP000 Touch Panel Replacement](https://icdn.tradew.com/file/201606/1569362/jpg/7621610.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
ESA Touch Screen Protective Film VT555W VT555WAP000 Touch Panel Replacement
Order each part separately is available
![ESA Touchscreen Terminal VT555W VT555WAP000 Touch Screen Front Overlay Repair Replacement ESA Touchscreen Terminal VT555W VT555WAP000 Touch Screen Front Overlay Repair Replacement](https://icdn.tradew.com/file/201606/1569362/jpg/7621623.jpg)
VT555W VT operator terminals ensure maximum availability of drivers and a full coverage of the PLC market and of otherdevices, such as drives, inverters and temperature controllers, including:
•Profibus-DP at 12 Mbit/s (addressing up to 127 terminals)
•Interbus-S at 500 Kbit/s (addressing up to 127 terminals)
•CAN (through built-in port or external adapter)
•Modbus in master and slave mode
•TCP/IP protocol support
ESA VT555W Main characteristics (modeldependant): High value solution formany applications Alarms, passwords, recipes Use of Windows® fonts Importation of graphicimages in any format Moving graphic objects Serial printing Integrated Profibus-DP andCAN Integrated Ethernet 10/100
VICPAS supply ESA Touchscreen Terminal VT555W Touch Panel Front Overlay with 365 days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the ESA VT555WAP000 HMI Parts.
Brand: | ESA |
Resolution: | 240 x 128 |
ASP serial port1: | RS232 (8 pin) |
Warranty: | 6-Months Warranty |
Product Line: | Touch Terminal |
Display Type: | Graphic LCD TFT |
Touch Screen Matrix: | 20x8 |
Display area size: | 123 x 68 (mm) |
Size: | 5.5" |
Part Number: | VT555WAP000 |
Related ESA VT555W Part No. :
ESA VT555W | Description | Inventory status |
VT555WA0000 | ESA Terminals HMI VT555W 000CN Touchscreen Replacement | In Stock |
VT555WAP0DP | ESA Terminals HMI VT555W AP0DP Touch Screen Replacement | In Stock |
VT555WAP000 | ESA Terminals HMI VT555W AP000 Touch Panel Replacement | In Stock |
VT555WA0000 | ESA Terminals HMI VT555W A0000 Touchscreen Replacement | In Stock |
ESA VT TEXT | Description | Inventory status |
ESA VT555W Operator Panel HMI Manuals PDF Download:
FAQ:
Question: How to operate the VT555W Terminal with Front Overlay touchscreen?
Answer:To be able to carry out a change in any editable variable field you musttouch the chosen field on the display and a page appears offering theneeded to modify the field.
Question: What is the VT555W Termination of CAN line?
Answer:The VT in question integratesthe termination resistances of the serial line (typically 120 ohms)which can be inserted by means of a jumper (preset on 1-2, line not terminated).To activate the termination:
• Make sure the device is not connected to the power supply.
• Remove the cover.
• Identify the jumper unit J2.
• Position the jumper between pins 2 and 3 (line terminated).
• Replace the back cover.
• Reconnect the power supply.
Question: What is ESA VT555W Touch Screen and Protective Film HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
