ESA Terminals HMI VT515W 000DP Touch Panel Replacement

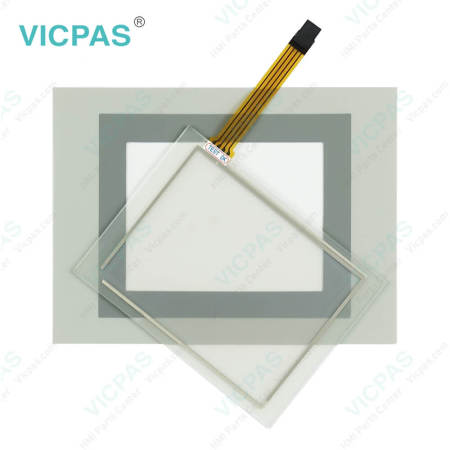

ESA Touch Screen Front Overlay VT515W VT515W000DP Touch Panel Replacement
Order each part separately is available
VT515W000DP with 5,7” graphic STN LCD display, 4blue levels, 16 rows by 40 characters(320 x 240), Touch-Screen, 640 KBproject, software clock, 16 KB recipes,10 mt cable
ESA VT515W Main characteristics (modeldependant): High value solution formany applications Alarms, passwords, recipes Use of Windows® fonts Importation of graphicimages in any format Moving graphic objects Serial printing Integrated Profibus-DP andCAN Integrated Ethernet 10/100
VICPAS supply ESA Touchscreen Terminal VT515W Touch Panel and Protective Film with 365 days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the ESA VT515W000DP HMI Parts.
| Brand: | ESA |
| Resolution: | 320 x 240 |
| ASP serial port1: | RS232 (8 pin) |
| Warranty: | 6-Months Warranty |
| Product Line: | Touch Terminal |
| Display Type: | Graphic LCD TFT |
| Touch Screen Matrix: | 20x16 |
| Display area size: | 115,17 x 86,37 (mm) |
| Size: | 5.7" |
| Part Number: | VT515W000DP |
Related ESA VT515W Part No. :
| ESA VT515W | Description | Inventory status |
| VT515W 000ET | ESA Terminals HMI VT515W 000ET Touch Screen Replacement | In Stock |
| VT515W000DP | ESA Terminals HMI VT515W 000DP Touch Panel Replacement | In Stock |
| VT515W000CN | ESA Terminals HMI VT515W 000CN Touch Panel Replacement | In Stock |
| VT515W00000 | ESA Terminals HMI VT515W 00000 Touch Screen Replacement | In Stock |
| ESA VT TEXT | Description | Inventory status |
ESA VT515W Operator Panel HMI Manuals PDF Download:
FAQ:
Question: How to operate the VT515W Terminal with Front Overlay touchscreen?
Answer:To be able to carry out a change in any editable variable field you musttouch the chosen field on the display and a page appears offering theneeded to modify the field.
Question: What is the VT515W Termination of CAN line?
Answer:The VT in question integratesthe termination resistances of the serial line (typically 120 ohms)which can be inserted by means of a jumper (preset on 1-2, line not terminated).To activate the termination:
• Make sure the device is not connected to the power supply.
• Remove the cover.
• Identify the jumper unit J2.
• Position the jumper between pins 2 and 3 (line terminated).
• Replace the back cover.
• Reconnect the power supply.
Question: What is ESA VT515W Touch Screen and Protective Film HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Common misspellings:
V515W000CNVT15W000CN
VT55W000CN
VT51W000CN
VT515000CN
