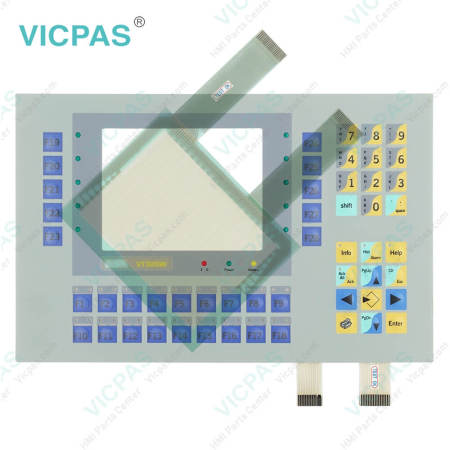

ESA Text HMI VT320W VT320WA0000 Membrane Keypad Replacement
ESA Text HMI VT320W VT320WA0000 Membrane Keypad Replacement
ESA TEXT HMI VT320W VT320WA0000 Membrane Keyboard Replacement
Order each part separately is available
ESA VT320W A0000 Graphic LCD16 colors STN 320x240 (5.7”) - 52 keys Interfaces: MSP, ASP - Project: 512 KB - Recipes: 128 KB
ESA VIDEO TERMINAL (VT) is a device that allows the user to control orsimply monitor a productive process. It can send commands using configuredby the user; it can send data determining the process on hand andcan display information deriving from the productive process. The informationcan be in the form of an Alarm, an Information (Info-) Message or inbinary data format.
VICPAS supply ESA TEXT HMI VT320W membrane switch with 6 months warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the ESA VT320WA0000 HMI Parts.
| Brand: | ESA |
| Display Type: | Graphic LCD 16 colors STN |
| Resolution: | 320x240 |
| Warranty: | 6-Months Warranty |
| Product Line: | VT TEXT |
| Display Type: | TEXT LCD |
| Display area size: | 4.55x3.43 |
| Columns by Rows: | Depending on used Font |
| Size: | 5.7" |
| Part Number: | VT320WA0000 |
Related ESA VT320W Part No. :
| ESA VT320W | Description | Inventory status |
| VT320WA0000 | ESA Text HMI VT320W VT320WA0000 Membrane Keypad Replacement | In Stock |
| VT320WAP000 | Membrane keyboard for ESA VT320W AP000 Replacement | In Stock |
| ESA VT TEXT | Description | Inventory status |
ESA VT320W Operator Panel HMI Manuals PDF Download:
FAQ:
Question: How to adjust the contrast on the ESA VT320W Display?
Answer:To improve the quality of the representation on the display it may be necessaryto adjust its contrast. This can be done by rotating the trimmer (C) atthe back of the VT ; turn it (using a small screwdriveror a trimmer tool) in one direction and, if the display quality worsens,turn it the other way.
Question: What is the VT320W Termination of CAN line?
Answer:The VT in question integratesthe termination resistances of the serial line (typically 120 ohms)which can be inserted by means of a jumper (preset on 1-2, line not terminated).To activate the termination:
• Make sure the device is not connected to the power supply.
• Remove the cover.
• Identify the jumper unit J2.
• Position the jumper between pins 2 and 3 (line terminated).
• Replace the back cover.
• Reconnect the power supply.
Question: What is ESA VT320W mebrane keyboard HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Common misspellings:
V320WA0000VT20WA0000
VT30WA0000
VT32WA0000
