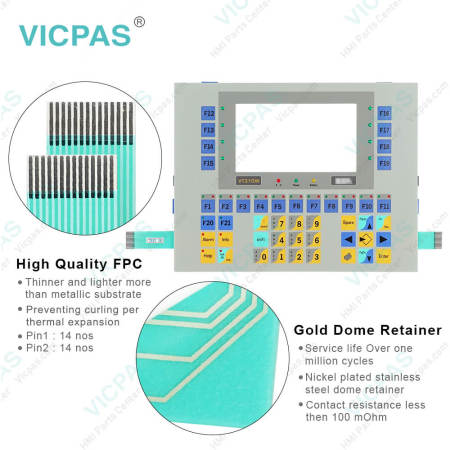

ESA TEXT HMI VT310W VT310WAP000 Membrane Keyboard Replacement
ESA VT310W AP000 Monochrome STN LCD240 x 128 (5.5”) - 46 keys Interfaces: MSP, ASP - Project: 512 KB - Recipes: 128 KB
ESA VIDEO TERMINAL (VT) is a device that allows the user to control orsimply monitor a productive process. It can send commands using configuredby the user; it can send data determining the process on hand andcan display information deriving from the productive process. The informationcan be in the form of an Alarm, an Information (Info-) Message or inbinary data format.
VICPAS supply ESA TEXT HMI VT310W membrane switch with 6 months warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the ESA VT310WAP000 HMI Parts.
| Brand: | ESA |
| Display Type: | Graphic LCD monochrome STN |
| Resolution: | 240x128 |
| Warranty: | 6-Months Warranty |
| Product Line: | VT TEXT |
| Display Type: | TEXT LCD |
| Display area size: | 4.85x2.68 |
| Columns by Rows: | Depending on used Font |
| Input voltage: | 18 - 32 V DC |
| Part Number: | VT310WAP000 |
Related ESA VT310W Part No. :
| ESA VT310W | Description | Inventory status |
| VT310WAP000 | ESA Text HMI VT310W VT310WAP000 Membrane Switch Replacement | In Stock |
| VT310WA0000 | ESA Text HMI VT310W VT310WA0000 Membrane Keypad Replacement | In Stock |
| ESA VT TEXT | Description | Inventory status |
ESA VT310W Operator Panel HMI Manuals PDF Download:
FAQ:
Question: How to adjust the contrast on the ESA VT310W Display?
Answer:To improve the quality of the representation on the display it may be necessaryto adjust its contrast. This can be done by rotating the trimmer (C) atthe back of the VT ; turn it (using a small screwdriveror a trimmer tool) in one direction and, if the display quality worsens,turn it the other way.
Question: What is the VT310W Termination of CAN line?
Answer:The VT in question integratesthe termination resistances of the serial line (typically 120 ohms)which can be inserted by means of a jumper (preset on 1-2, line not terminated).To activate the termination:
• Make sure the device is not connected to the power supply.
• Remove the cover.
• Identify the jumper unit J2.
• Position the jumper between pins 2 and 3 (line terminated).
• Replace the back cover.
• Reconnect the power supply.
Question: What is ESA VT310W mebrane keyboard HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Common misspellings:
T310WAP000V310WAP000
VT10WAP000
VT30WAP000
VT31WAP000
VT310AP000
