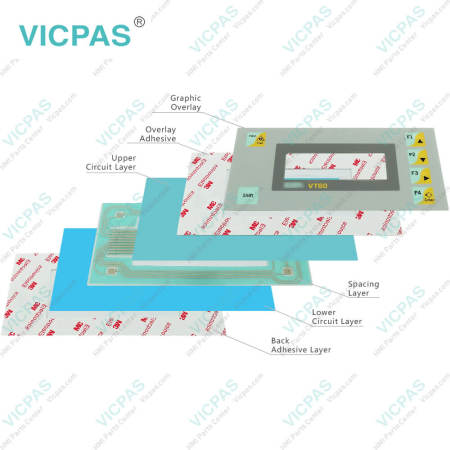

ESA Text HMI VT60 VT06000000 Membrane Switch Replacement
ESA TEXT HMI VT60 VT060 00000 Membrane Keyboard Repair Replacement
ESA VT60 can be supplemented with accessories to boost and broaden theirperformance.
ESA VIDEO TERMINAL (VT) is a device that allows the user to control orsimply monitor a productive process. It can send commands using configuredby the user; it can send data determining the process on hand andcan display information deriving from the productive process. The informationcan be in the form of an Alarm, an Information (Info-) Message or inbinary data format.
The VTs can be divided into two groups: those with a keyboard and thosewithout but equipped with a Touch Screen.
VICPAS supply ESA TEXT HMI VT60 membrane switch with 6 months warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the ESA VT06000000 HMI Parts.
| Brand: | ESA |
| Numerical keypad: | NO |
| Input fuse: | Internal DC fuse |
| Warranty: | 6-Months Warranty |
| Product Line: | VT TEXT |
| Display Type: | TEXT LCD |
| Columns by rows: | 20 * 4 |
| Display area size: | 70.4 * 20.8 |
| Input voltage: | 18 - 32 V DC |
| Part Number: | VT06000000 |
Related ESA VT60 Part No. :
| ESA VT60 | Description | Inventory status |
| VT060000CN | ESA Text HMI VT060 VT060000CN Membrane Switch Replacement | In Stock |
| VT06000000 | ESA Text HMI VT60 VT06000000 Membrane Switch Replacement | In Stock |
| ESA VT TEXT | Description | Inventory status |
ESA VT60 Operator Panel HMI Manuals PDF Download:
FAQ:
Question: How to adjust the contrast on the ESA VT60 Display?
Answer:To improve the quality of the representation on the display it may be necessaryto adjust its contrast. This can be done by rotating the trimmer (C) atthe back of the VT ; turn it (using a small screwdriveror a trimmer tool) in one direction and, if the display quality worsens,turn it the other way.
Question: What is the VT60 Termination of CAN line?
Answer:The VT in question integratesthe termination resistances of the serial line (typically 120 ohms)which can be inserted by means of a jumper (preset on 1-2, line not terminated).To activate the termination:
• Make sure the device is not connected to the power supply.
• Remove the cover.
• Identify the jumper unit J2.
• Position the jumper between pins 2 and 3 (line terminated).
• Replace the back cover.
• Reconnect the power supply.
Question: What is ESA VT60 mebrane keyboard HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Common misspellings:
T06000000V06000000
VT6000000
VT0000000
VT0600000
