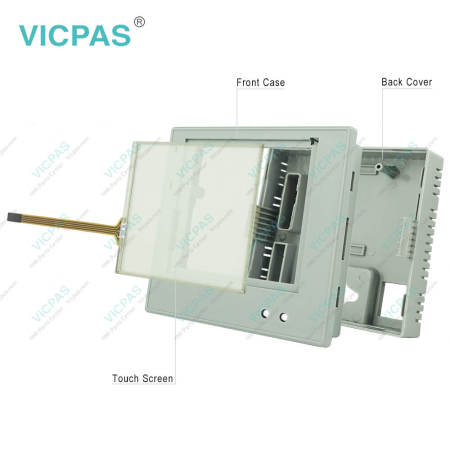

Beijer HMI PWS6400F-S 300-54401 Touch Screen Replacement
Beijer HMI PWS6400F-S 300-54401 Touch Screen Replacement
Beijer HMI PWS6400F-S 300-54301 Touch Screen Panel Protective Film LCD Display Housing
Order each part separately is available
Beijer PWS6400F-S 3.5'' graphic touch HMI kits include touchscreen, Enclosure, Power Supply Connector, Mounting Brackets, LCD Display Screen and overlay
• 16 shades of blue
• STN display
• COM Port x1
• 240 x 240 pixels
HITECH-PWS series offers valuable fundamental HMI functionality. The series includes keypad and touchscreen interfaces and will be available in seven different sizes. The PWS series provides valuable basic HMI functions. This series includes a keyboard and touch screen interface, from 3 to 10.4 inches in 7 different sizes. The PWS series provides three functional levels: Standard, Plus and Network, and you can select and purchase the required HMI technology level. As an operating terminal, the Standard version contains most of the hardware and software requirements that should exist in terms of existing sizes. The Plus version has the same functions as the Standard version, and has expanded memory for data/recipe processing, and a multi-function port for output.
VICPAS supplies Beijer PWS6400F-S touchscreen, Overlay, HMI Case, LCD Display Panel, Mounting Brackets and Power Supply Connector, with 12 months warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the Beijer 300-54301 PWS6400F-S HMI Parts.
| Brand: | Beijer |
| Touch type: | Resistive |
| Housing material: | Plastic, Gray |
| Warranty: | 6-Months Warranty |
| Product Line: | Beijer HITECH PWS |
| Display Type: | LCD |
| Size: | 3.3 INCH |
| Resolution: | 240x240 pixels |
| Part number: | 300-54301 |
| Display type: | Mono STN LCD |
Beijer PWS6400F-S Operator Panel HMI Manuals PDF Download:
FAQ:
Question: How to install PWS6400F-S Terminal?
Answer:The basic H-Designer system requirements are as follows:
– PC - CPU 80586 or higher;
– Memory - 64 MB RAM or more;
– Hardware - 60 MB or more available hard drive space;
– Display - VGA or SVGA. Microsoft Windows with 256 colors or higher, and aresolution of 800×600 or higher.
Since all the programs in the H-Designer suite have been compressed, you need touncompress and install the software before using it.
Question: What is the Ladder Programming of Beijer H-Series operator panel?
Answer: TLadder logic is a method of drawing electrical logic schematics. It can also be used forprogramming controllers. A program in ladder logic, also called a ladder diagram, is similar to a schematic for a set of relay circuits.
H-series operator terminals and H-Designer support ladder programming and functions in a continuous, cyclical series of tasks called scan. When the operator terminal is running, your program should be in one of the following statuses: RUN, STOP, PAUSE, and ERROR, and you can control the status changing by using debug commands and inserting instructions in your program.
Detailed information about using ladder programming as well as examples are available by selecting Help/LadderPlus in H-Designer
Question: What is PWS6400F-S mebrane keyboard HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
