Beijer HMI iX Panel Pro T150 C2D Nautic Touchscreen
Beijer HMI iX Panel Pro T150 C2D Nautic Touchscreen

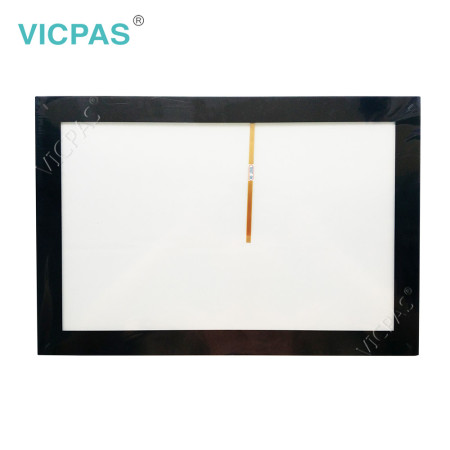

Beijer HMI iX Panel Pro T150 C2D Nautic Touchscreen Repair Replacement
Beijer iX Panel Pro T150 C2D Nautic 15.4'' graphic touch HMI with iX runtime
• 15.4" TFT-LCD touch screen
• 1280 × 800 (16:10)
• Application storage 1.4 GB
• Operating temperature -10 to +50 °C
• CE and UL508 approvals
iX TxX operator panelsRanging from 21-inch industrial PCs to ultra-compact 4-inch panels, all models have high performance CPUs and the latest screen technology.
VICPAS supply Beijer iX Panel Pro T150 C2D Nautic Touch Panel with 365 days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the Beijer iX Panel Pro T150 C2D Nautic HMI Parts.
| Brand: | Beijer |
| Touch type: | Resistive |
| Size: | 15 INCH |
| Warranty: | 365 Days |
| Product Line: | iX Panel Pro T150 C2D Nautic |
| Size diagonal: | 1280 × 800 pixel |
| Life time: | 50,000 hrss |
| Touch type: | Resistive |
| Input voltage: | 20 - 30 V DC |
| Power: | 12W |
Beijer iX Panel Pro T150 C2D Nautic Touch Panel HMI Manuals PDF Download:
FAQ:
Question: How to ground the iX TxX Series Operator Panel?
Answer:1. Connect a 2.5mm2 wire between the operator panel’s quick-connect plinth and the panel’s chassis, see 2 in drawing above.
2. Connect a 6mm2 or 4mm2 wire or grounding braid between the operator panel’s chassis and the closest grounding point on the door, see 3 in drawing above.
3. Connect a strong but short grounding braid between the door and the devicecabinet, see 4 in drawing above.
4. Twist the cables onto the 24VDCfeed, see 5 in drawing above. Minimumcross-section of the cable is 2.5mm2.2 turns around the ferrite core provide 4 times the suppression of 1 turn.3 turns around the ferrite core provide 9 times the suppression of 1 turn.
Question: Why the Beijer iX Panel Pro T150 C2D Nautic HMI have the chemical resistance?
Answer:Autoflex EBA180L covers the overlay surrounding the screen.
Question: What is Beijer iX Panel Pro T150 C2D Nautic Touchscreen and Overlay HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
