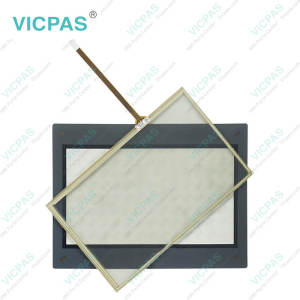

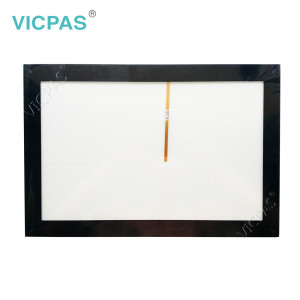

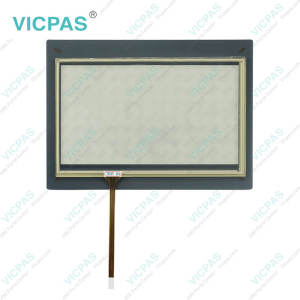

Beijer HMI X2 extreme 12 HP 640014405 Touch Screen

Beijer HMI X2 extreme 12 HP 640014405 Touch Screen

Beijer HMI X2 extreme 12 HP 640014405 Touch Screen
CategoriesX2 Series HMI
BrandVICPAS
ModelX2 extreme 12 HP
BrandBeijer
Warranty365 Days
Product LineX2 extreme
Resolution1024 × 600 pixel
SupplyBeijer X2 extreme 12 HP Touchscreen
Part Number640014405
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Download
Update TimeNov 9,2024
Detail Information

Beijer HMI X2 extreme 12 HP 640014405 Touchscreen Repair Replacement


 Beijer HMI X2 extreme 12 HP 640014405 Touchscreen Repair Replacement

Beijer X2 extreme 12 HP 640014405 12.1 INCH HMI with iX runtime HMI Repair kit


• 1280 × 800 pixel (16:10) TFT-LCD touch screen
• High brightness display
• 2 GB application memory
• Ethernet 2x100 Mbit
• -30°C to +70°C operating temperature
• DNV GL, KR, LR, ABS, CCS, BV, NK marine approvals
• UL Class I Div 2, ATEX/IECEx Zone 2,22

X2 extreme panels are certified by all major classification societies. Designed to perform in rugged outdoor environments and in hazardous areas where gases, vapors and dust are present. Extended environmental capabilities include operating temperatures from -30°C to +70°C, high vibrations and high-pressure wash-downs.

VICPAS supply Beijer X2 extreme 12 HP Touch Panel with 365 days warranty and support Urgent Worldwide Shipping.




  Contact Best Price


Specifications:

The table below describes the parameters of the 640014405 Beijer X2 extreme 12 HP HMI Parts.

Brand: Beijer
Part number: 640014405
Size:12 INCH
Warranty: 365 Days Warranty
Product Line:X2 extreme 12 HP
Size diagonal:1024 × 600 pixel
Display type: TFT-LCD
Touch type:Resistive
Input voltage:20 - 30 V DC
Power: 12W


Beijer X2 extreme 12 HP Touch Panel HMI Manuals PDF Download:

  • Beijer X2 extreme Series Maintenance Manuals
  • Beijer X2 extreme 12 HP HMI datasheet pdf


  • FAQ:

    Question: How to install the Beijer X2 extreme 12 HP Touch Panel?

    Answer:1. Unpack and check the delivery. If damage is found, notify the supplier.
    2. To cut a correct opening for the operator panel, use the cut out dimensionsin the outline drawing. Aseparate cut out drawing is available for download from theBeijer Electronics web site. Formore information, see sections Operator Panel Drawings andTechnicalData.
    3. Install the operator panel into the cutout.
    4. Secure the operator panel in position by screwing the slotted thumb screwclockwise, allowing the built-in bracket toflipout and tightenagainst thecabinet
    5. Secure the operator panel in position using the built-in brackets or screws,depending on the panel type.
    6. In caseswhere the front panel seal (IP54 or greater, NEMA-4X) is critical,a torquewrench shouldbeused to ensure all screws are torquedwithinthespecification above


    Question: Why the Beijer X2 extreme 12 HP HMI have the chemical resistance?

    Answer:Autoflex EBA180L covers the overlay surrounding the screen.


    Question: What is Beijer X2 extreme 12 HP Touchscreen and Overlay HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.

    Common misspellings:

    64004405
    64001405
    64001405
    64001445
