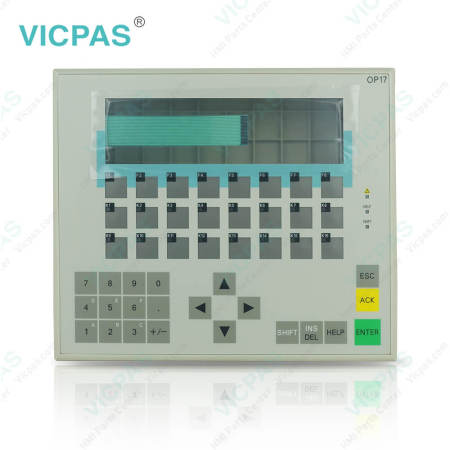

6AV3617-1JC30-0AX2 Siemens SIMATIC OP17 Membrane Keypad

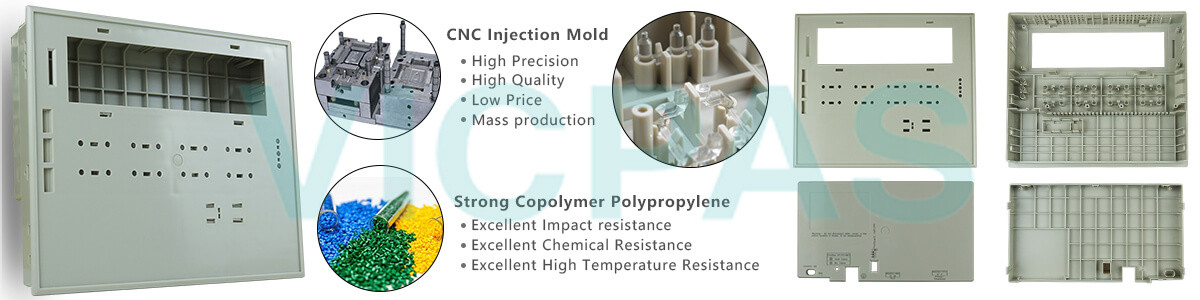

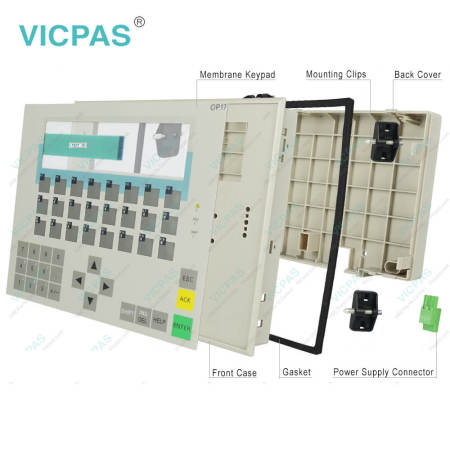

6AV3617-1JC30-0AX2 Siemens SIMATIC HMI OP17 OP 17 OPERATOR PANEL Membrane Keyboard, Mounting Clips, Case Gasket, Power Supply Connector and Plastic Case Shell Repair Replacement
Order each part separately is available
6AV3617-1JC30-0AX2 Operator Panel OP 17/DP12 LC display, LED backlit 4x 20/8x 40 lines x characters SIMATIC S5, 505, S7, M7, native drivers, PROFIBUS DP 12 Mbaud with UL/CSA approval
The 6AV3617-1JC30-0AX2 OP17 has a plastic housing with a touch-sensitive front and is therefore suitable for ungrounded installation. The coloring of the front foil conforms with machinery directive EN 60204.
The OP17 is available in the following versions:
• OP17/PP,
• OP17/DP and
• OP17/DP-12.
The versions differ only in their communication options. figure 1-3 shows the design of Operator Panel OP17.
VICPAS supply 6AV3617-1JC30-0AX2 Siemens OP17 membrane switch, Power Supply Connector, Mounting Clips, Case Gasket and Plastic Shell with 6 months warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the 6AV3617-1JC30-0AX2 Siemens OP17 HMI Parts.
| Number of system keys : | 22 |
| Numerical keypad: | YES |
| Character size: | 5 mm |
| Warranty: | 6-Months Warranty |
| Product Line: | Siemens OP17 |
| Number of function keys: | 24 |
| Part Number: | 6AV3515-1EB30-1AA0 |
| System keys: | YES |
| Design as touch screen: | No |
| Design of display: | LC display |
Related Siemens OP17 Part No. :
| SINUMERIK Operator panel OP17 | Description | Inventory status |
| 6AV3617-4EB12-0AA0 | PP32/OP17 BUILT-IN UNIT | In Stock |
| 6AV3617-4EB42-0AA0 | PP32/OP17 | In Stock |
| 6AV3617-1JC00-0AX2 | OP17/PP OPERATOR PANEL | In Stock |
| 6AV3617-1JC20-0AX2 | OP17/DP OPERATOR PANEL | In Stock |
| 6AV3617-1JC30-0AX2 | OP17/DP12 OPERATOR PANEL | In Stock |
| 6AV3617-1JC30-0AX1 | OP17/DP12 OPERATOR PANEL | In Stock |
| 6AV3617-1JC00-0AX1 | OP17/PP OPERATOR PANEL | In Stock |
| 6AV3617-1JC20-0AX1 | OP17/DP OPERATOR PANEL | In Stock |
| 6AV3617-1JC30-0AX0 | Operator Panel OP17/DP12 | In Stock |
| 6AV3617-4EB42-0AL0 | OP17 PP32 | In Stock |
| 6AV3617-4EB42-1AA0 | OP17 PP32 | In Stock |
| 6AV3617-4FB42-0AL0 | OP17 PP32 | In Stock |
| 6AV3617-5BA00-0BC0 | OP17 DP | In Stock |
| 6AV3617-5BB00-0AB0 | OP17 DP | In Stock |
| 6AV3617-5BB00-0AB1 | OP17 DP | In Stock |
| 6AV3617-5BB00-0AJ0 | OP17 DP | In Stock |
| 6AV3617-5BB00-0BD0 | OP17 DP | In Stock |
| 6AV3617-5BB00-OBEO | OP17 DP | In Stock |
| 6AV3617-5CA00-0AD0 | OP17 DP12 | In Stock |
| 6AV3617-5BB00-0AE0 | OP17\DP | In Stock |
| Siemens Operator panel OP17 | Description | Inventory status |
Siemens OP17 series HMI Manuals PDF Download:
FAQ:
Question: What is the dimension of 6AV3617-1JC30-0AX2 Siemens OP17 membrane switch??
Answer:It is 230 millimeter long and 194 millimeters wide.
Question: How to Backup the battery Siemens OP17 Operator Panel?
Answer:You can upgrade the OP17 with an optional backup battery. When the powersupply is interrupted, the backup battery ensures that• the operating data in the OP17 message buffer are retained and• the hardware clock continues to run on its internal reserve power.
Question: What is the 6AV3617-1JC30-0AX2 Siemens OP17 mebrane switch and shell HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Common misspellings:
6V3617-1JC30-0AX26A3617-1JC30-0AX2
6AV617-1JC30-0AX2
6AV317-1JC30-0AX2
