6AV6545-0BA15-2AX0 Siemens SIMATIC TP170a Touchscreen Panel
6AV6545-0BA15-2AX0 Siemens SIMATIC TP170a Touchscreen Panel

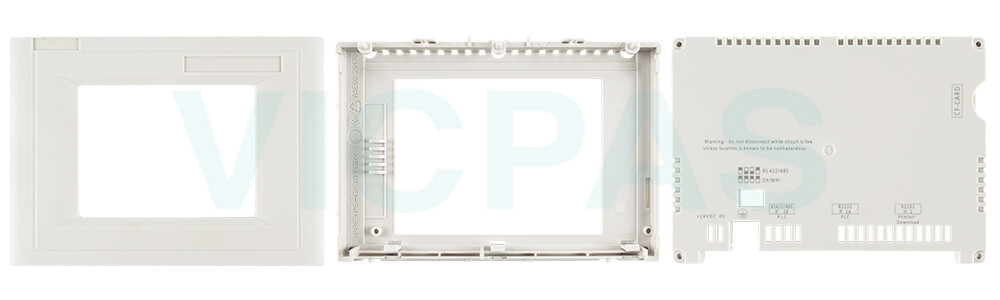

6AV6545-0BA15-2AX0 Siemens SIMATIC HMI TP170 Touch Screen Panel, Overlay, Plastic shell, Power Supply Connector, Case Gasket, LCD Gasket, Mounting Clips, LCD Bracket, Screws and LCD Display Repair
Order each part separately is available
6AV6 545-0BA15-2AX0 SIMATIC Touch Panel TP 170A blue mode STN display MPI/PROFIBUS DP interface configurable with ProTool/Lite From Version V5.2
The SIMATIC Touch Panel TP 170A color panel from the SIPLUS extreme product range is available for substitution of the affected SIPLUS TP 170B color panel for applications under harsh ambient conditions. A SIPLUS version for use at extended temperature ranges is presently not available.SIPLUS extreme is the product family with ruggedized and refined components on the basis of SIMATIC standard products.
TP 170a Features
● 5.7" STN display; resolution of 320 x 240 pixels
● Rugged and compact; shallow mounting depth of 45 mm (device dimensions compatible to the TP 070)
● Multi-Master communication for the integration into networks
● Onboard MPI/PPI
● Alarm system with freely definable alarm classes and alarm history
● Password system
● Alarm indicator for displaying machine and system states
● 5 Languages (can be switched online), including Asian and Cyrillic
● Short configuration and commissioning times
● Service-friendly due to maintenance-free construction and long life of the display backlight
VICPAS supply 6AV6545-0BA15-2AX0 Siemens TP170 touch panel, Overlay, Mounting Clips, LCD Bracket, Power Supply Connector, LCD Gasket, Case Gasket, Screws, Plastic Case Cover and LCD display. All of them with VICPAS 365-day warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the 6AV6545-0BA15-2AX0 Siemens TP170 HMI Parts.
| Part Number : | 6AV6545-0BA15-2AX0 |
| Size | 5.7" |
| Display | STN Display (LCD) |
| Warranty: | 365 days Warranty |
| Product Line: | Siemens TP170 |
| Resolution: | 320 x 240; |
| Color Depth: | 4 Blue Levels |
| Touchscreen: | Analog/resistive |
| MTBF of Backlight: | approx. 50,000 h |
| PLC Connection: | SIMATIC S7-200 |
Related Simatic TP170 Part No. :
| Siemens TP170 | Description | Inventory status |
| 6AV6640-0CA01-0AX0 | TP170 MICRO | In Stock |
| 6AG1545-0BC15-2AX0 | SIPLUS HMI TP170B COLOR | In Stock |
| 6AV6545-0BA15-2AX0 | TP170A TOUCH PANEL BLUE MODE STN-DISPLAY | In Stock |
| 6AV6545-0BB15-2AX0 | TP170 TOUCH PANEL | In Stock |
| 6AV6545-0BC15-2AX0 | TP170 TOUCH PANEL | In Stock |
| SIMATIC HMI TP170 | Description | Inventory status |
Siemens TP170 HMI Manuals PDF Download:
FAQ:
Question:How to install the TP170 HMI device?
Answer:To complete the installation, four spring terminals are required from the accessories for the TP 170micro, TP 170A and TP 170B and six spring terminals are required for the OP 170B. The installation seal must be mounted on the HMI device. If the installation seal is damaged, order a replacement.
Question: Which software options are available for the Siemens TP170?
Answer:WinCC Flexible/Sm@rtServiceThe Sm@rtService option enables you to access a remote HMI device from theHMI device or PC via Ethernet.
Question: What is the 6AV6545-0BA15-2AX0 Siemens TP170 HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Common misspellings:
6V6545-0BA15-2AX06A6545-0BA15-2AX0
6AV545-0BA15-2AX0
6AV645-0BA15-2AX0
6AV655-0BA15-2AX0
6AV654-0BA15-2AX0
6AV65450BA15-2AX0
