6AG1647-0AF11-4AX0 Siemens KTP1000 Basic Color PN Touch Screen
6AG1647-0AF11-4AX0 Siemens KTP1000 Basic Color PN Touch Screen
6AG1647-0AF11-4AX0 Siemens SIPLUS KTP1000 BASIC COLOR DP 10,4" Touchscreen Panel Glass,Membrane Keypad, Enclosure, Case Gasket, LCD Gasket, Power Supply Connector, Screws, Mounting Clips and LCD Display Repair Replacement
Order each part separately is available
6AG1647-0AF11-4AX0 SIPLUS HMI KTP1000 BASIC COLOR DP 10.4" FORMEDIAL STRESS WITH CONFORMAL COATING BASED ON 6AV6647-0AF11-3AX0
The visualization of Siemens KTP1000 Basic allows for considerably increased process quality with compact plants or smaller applications. Featuring all important HMI basic functions, SIMATICHMI Basic Panels Generation thus opens up completely new possibilities in terms of operation and monitoring in the field of mechanical engineering at a particularly attractive price. Besides, These also support vertical configuration. Their high resolution and color depth of 64,000 colors facilitate improved process visualization. The displays’ brightness is dimmable up to 100 %, offering optimum flexibility.

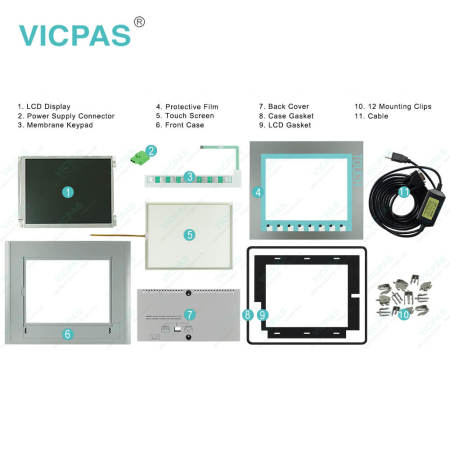

VICPAS supply 6AG1647-0AF11-4AX0 Siemens KTP1000 Basic touch panel, Overlay, Mounting Clips, Power Supply Connector, LCD Gasket, Case Gasket, Screws, HMI Case and LCD display. All of them with VICPAS 365 days warranty and support Urgent Worldwide Shipping.
Product Video:
The video below describes the product details of the 6AG1647-0AF11-4AX0 SIMATIC HMI KTP1000 Basic Touch Panel Glass, Overlay, Enclosure and LCD Display Repair Replacement. Siemens KTP1000 Basic HMI parts, including touch screen panel, protective film, Enclosure with lcd display.
Specifications:
The table below describes the parameters of the 6AG1647-0AF11-4AX0 Siemens KTP1000 Basic HMI Parts.
| Part Number : | 6AV6647-0AF11-3AX0 |
| Touchscreen: | colour LCD display |
| Design of display | TFT widescreen display |
| Warranty: | 365 days Warranty |
| Product Line: | Siemens KTP1000 Basic |
| Power consumption, typ. | 15 W |
| Mounting position: | vertical |
| Key Features: | Touch screen support |
| Language: | Worldwide |
| Processor type | RISC 32 bit |
Related Siemens KTP1000 Basic Part No. :
| Siemens KTP1000 Basic | Description | Inventory status |
| 6AV6647-0AE11-3AX0 | SIMATIC HMI KTP1000 BASIC COLOR DP | In Stock |
| 6AV6647-0AF11-3AX0 | SIMATIC HMI KTP1000 BASIC COLOR PN | In Stock |
| 6AG1647-0AE11-4AX0 | SIPLUS KTP1000 BASIC COLOR DP 10,4" | Available Now |
| 6AG1647-0AF11-4AX0 | SIMATIC HMI KTP1000 BASIC DP | In Stock |
| SIMATIC HMI KTP1000 Basic | Description | Inventory status |
Siemens KTP1000 Basic HMI Manuals PDF Download:
FAQ:
Question: What is the size of 6AG1647-0AF11-4AX0 Siemens KTP1000 touch panel??
Answer:The Siemens KTP1000 Basic TouchScreen is 10.4-inch.It is 234.2 millimeter long and 181.2 millimeters wide.
Question: How to reset Siemens Simatic KTP1000 to factory state?
Answer:To restore the factory settings on the HMI device, follow these steps:1. Set the HMI device to "bootstrapping" mode.– Open the "OP Properties" dialog on the HMI device in the Control Panel.– Switch to the "Device" tab and select "Reboot".The "Attention" dialog box opens.– Select "Prepare for Reset".The HMI device restarts and switches to "bootstrapping" mode. If you do not reset the HMI device to the factory settings, the HMI device restarts after 10 minutes.2. Select the "Update operating system" command in the "Online > HMI device maintenance" menu on the configuration PC in WinCC.The "SIMATIC ProSave [OS-Update]" dialog box opens. The path to the image of the operating system is already set.3. If needed, select another path for the operating system image that you wish to transfer to the HMI device.4. Enable "Reset to factory settings".5. Enter the MAC address of the HMI device.6. Click "Update OS".The operation can take some time.
Question: What is the 6AG1647-0AF11-4AX0 Siemens KTP1000 Basic HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Common misspellings:
6V6647-0AF11-3AX06A6647-0AF11-3AX0
6AV647-0AF11-3AX0
6AV647-0AF11-3AX0
6AV667-0AF11-3AX0
