6AV2125-2JB23-0AX0 Simatic HMI KTP900F Mobile Touch Panel
6AV2125-2JB23-0AX0 Simatic HMI KTP900F Mobile Touch Panel

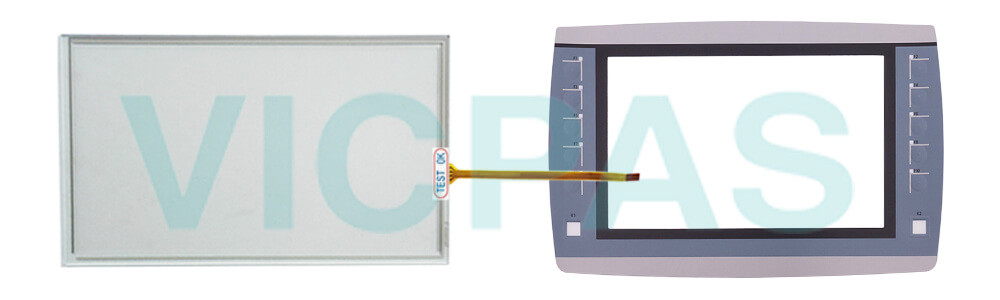

6AV2125-2JB23-0AX0 Simatic HMI KTP900F mobile 6AV2 125-2JB23-0AX0 Touchscreen Panel Glass, Overlay and LCD Display Repair Replacement
Order each part separately is available
6AV2 125-2JB23-0AX0 SIMATIC HMI KTP900F MOBILE, 9.0'' TFT DISPLAY, 800 X 480PIXELS,16M COLOR, KEY AND TOUCH OPERATION, 10FUNCTION KEYS, 1 X PROFINET/INDUSTRIAL ETHERNETINTERFACE; 1 X MULTIMEDIA CARD, 1 X USB,ACKNOWLEDGEMENT SWITCH, EMERGENCY-STOP BUTTON,CONFIGURABLE FROM WINCC COMFORT V13 SP1
The visualization of Siemens KTP900 Basic allows for considerably increased process quality with compact plants or smaller applications.Featuring all important HMI basic functions, SIMATICHMI Basic Panels Generation thus open up completely new possibilities in terms of operation and monitoring also in the field of mechanical engineering at a particularly attractive price.Beside, These also support vertical configuration. Their high resolution and color depth of 64,000 colors facilitate improved process visualization. The displays’ brightness is dimmable up to 100 %, offering optimum flexibility.
VICPAS supply 6AV2125-2JB23-0AX0 Siemens KTP900 Basic touch panel, Overlay and LCD display. All of them with VICPAS 365 days warranty and support Urgent Worldwide Shipping.
Product Video:
The video below describes the product details of the 6AV2125-2JB23-0AX0 SIMATIC HMI KTP900 Basic Touch Panel Glass, Overlay and LCD Display Repair Replacement. Siemens KTP900 Basic HMI parts, include touch screen panel, protective film with lcd display.
Specifications:
The table below describes the parameters of the 6AV2125-2JB23-0AX0 Siemens KTP900 Basic HMI Parts.
| Part Number : | 6AV2125-2JB23-0AX0 |
| Touchscreen: | colour LCD display |
| Design of display | TFT widescreen display |
| Warranty: | 365 days Warranty |
| Product Line: | Siemens KTP900 Basic |
| Power consumption, typ. | 11 W |
| Mounting position: | vertical |
| Key Features: | Touch screen support |
| Language: | Worldwide |
| Processor type | ARM |
Related Siemens KTP900 Basic Part No. :
| Siemens KTP900 Basic | Description | Inventory status |
| 6AV2125-2JB03-0AX0 | SIMATIC HMI KTP900 MOBILE | In Stock |
| 6AG1123-2JB03-2AX0 | SIPLUS HMI KTP900 BASIC | In Stock |
| 6AV2123-2JB03-0AX0 | SIMATIC HMI KTP900 BASIC | Available Now |
| 6AV2125-2JB23-0AX0 | SIMATIC HMI KTP900F MOBILE | In Stock |
| SIMATIC HMI KTP900 Basic | Description | Inventory status |
Siemens KTP900 Basic HMI Manuals PDF Download:
FAQ:
Question: What is the size of 6AV2125-2JB23-0AX0 Siemens KTP900 touch panel??
Answer:The Siemens KTP900 Basic TouchScreen is 9-inch.It is 215.5 millimeter long and 129.3 millimeters wide.
Question: How to reset Siemens Simatic KTP900 to factory state?
Answer:To restore the factory settings on the HMI device, follow these steps:1. Set the HMI device to "bootstrapping" mode.– Open the "OP Properties" dialog on the HMI device in the Control Panel.– Switch to the "Device" tab and select "Reboot".The "Attention" dialog box opens.– Select "Prepare for Reset".The HMI device restarts and switches to "bootstrapping" mode. If you do not reset the HMI device to the factory settings, the HMI device restarts after 10 minutes.2. Select the "Update operating system" command in the "Online > HMI device maintenance" menu on the configuration PC in WinCC.The "SIMATIC ProSave [OS-Update]" dialog box opens. The path to the image of the operating system is already set.3. If needed, select another path for the operating system image that you wish to transfer to the HMI device.4. Enable "Reset to factory settings".5. Enter the MAC address of the HMI device.6. Click "Update OS".The operation can take some time.
Question: What is the 6AV2125-2JB23-0AX0 Siemens KTP900 Basic HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Common misspellings:
6AV215-2JB23-0AX06AV212-2JB23-0AX0
6AV21252JB23-0AX0
6AV2125-JB23-0AX0
6AV2125-2B23-0AX0
6AV2125-2J23-0AX0
6AV2125-2JB3-0AX0
6AV2125-2JB2-0AX0
