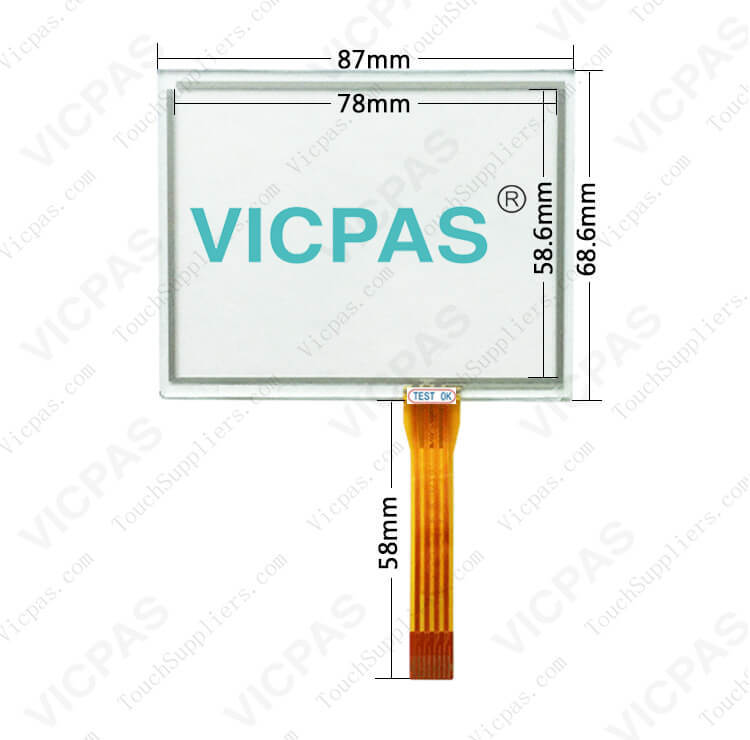

The XBTGT1105 XBTGT1135 HMI Part is a Schneider Magelis XBT GT 3.8-inch HMI that make use of an Analogue resistive touch panel. Its dimensions are 87 mm long and 68.6 mm wide and the length of the cable is 58mm. Users can input and set the machine’s parameters through the 65536 colours trans-missive, thin-film transistor colour active matrix, 3.8-inch LCD display screen with a display dimension of 6.6in x 5.32in and a touch sensitive zone of 320 x 240 pixels QVGA LCD Display.

This Schneider Magelis XBT GT is powered using 24 VDC power. The most common series is Series A. The Magelis HMI XBTGT product line contains a group of panel-mount display units that have both keypad or touch-screen offering for the user input method. These HMI terminals are available in 3.8-inch, 5.7-inch, 7-inch, and 10-inch display sizes. The XBTGT1105 XBTGT1135 user manual product date sheet and you can send an email for best price.

The HMI Magelis XBTGT1105 XBTGT1135 has an analogue resistive surface touch and a LED backlight with a standby time of up to 50,000 hours. It has a battery-backed real-time clock with a battery lifespan of 6 years when used at a temperature below 80 °F. It also has a factory-built internal cache memory of 256 MB for storing the user settings and application parameters.

Specifications:

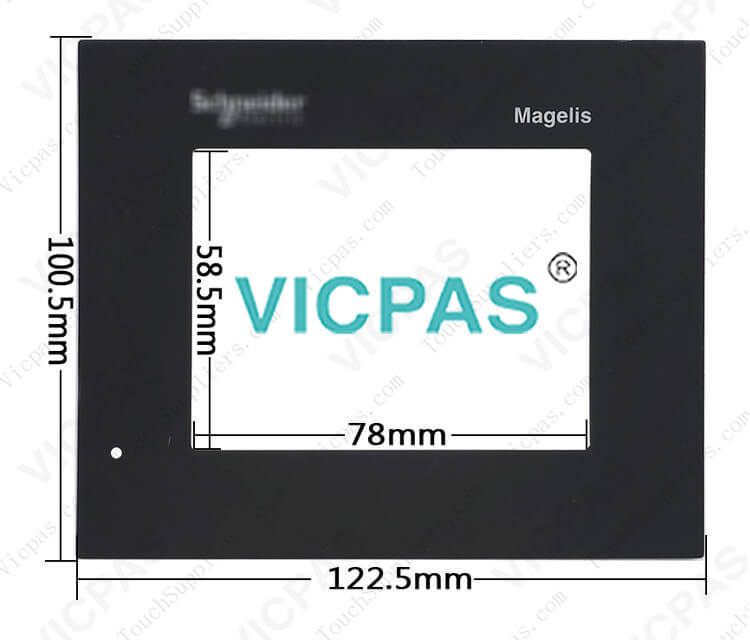

The table below describes the parameters of the XBTGT1105 XBTGT1135 HMI Part touchscreen and protective film.

PDF Download:

XBTGT1105 User Manual Product datasheet

XBTGT1135 User Manual Product data sheet

Magelis XBTGT Series Part No.
