Beijer HMI PWS6560S-S 300-55103 Touch Screen Replacement
Beijer HMI PWS6560S-S 300-55103 Touch Screen Replacement

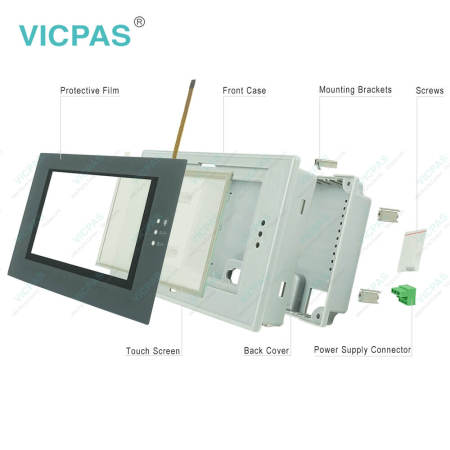

Beijer HMI PWS6560S-S 300-55103 Touch Screen Panel Protective Film LCD Screen Enclosure
Order each part separately is available
Beijer PWS6560S-S 4.7'' graphic touch HMI kits include touchscreen, LCD Display Panel, Power Supply Connector, Mounting Brackets, Plastic Case and overlay
• 16 shades of blue
• STN display
• COM Port x1
• 240 x 128 pixels
HITECH-PWS series offers valuable fundamental HMI functionality. The series include keypad and touchscreen interfaces and will be available in seven different sizes.The PWS series provides valuable basic HMI functions. This series includes a keyboard and touch screen interface, from 3 inches to 10.4 inches in 7 different sizes. The PWS series provides three functional levels: Standard, Plus and Network, and you can select and purchase the required HMI technology level.As an operating terminal, the Standard version contains most of the hardware and software requirements that should exist in terms of existing sizes.The Plus version has the same functions as the Standard version, and has expanded memory for data/recipe processing, and a multi-function port for output.
VICPAS supply Beijer PWS6560S-S touchscreen, Overlay, Mounting Brackets, Power Supply Connector, Plastic Cover Body and LCD Display with 12 months warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the Beijer 300-55103 PWS6560S-S HMI Parts.
| Brand: | Beijer |
| Touch type: | Resistive |
| Housing material: | Plastic, Gray |
| Warranty: | 6-Months Warranty |
| Product Line: | Beijer HITECH PWS |
| Display Type: | LCD |
| Size: | 4.7 INCH |
| Resolution: | 240x128 pixels |
| Part number: | 300-55103 |
| Display type: | Mono STN LCD |
Beijer PWS6560S-S Operator Panel HMI Manuals PDF Download:
FAQ:
Question: How to instiall PWS6560S-S Terminal?
Answer:The basic H-Designer system requirements are as follows:
– PC - CPU 80586 or higher;
– Memory - 64 MB RAM or more;
– Hardware - 60 MB or more available hard drive space;
– Display - VGA or SVGA. Microsoft Windows with 256 colors or higher, and aresolution of 800×600 or higher.
Since all the programs in the H-Designer suite have been compressed, you need touncompress and install the software before using it.
Question: What is the Ladder Programming of Beijer H-Series operator panel?
Answer:TLadder logic is a method of drawing electrical logic schematics. It can also be used forprogramming controllers. A program in ladder logic, also called a ladder diagram, issimilar to a schematic for a set of relay circuits.
H-series operator terminals and H-Designer support ladder programming and functionsin a continuous, cyclical series of tasks called scan. When the operator terminalis running, your program should be in one of the following status: RUN, STOP,PAUSE, and ERROR, and you can control the status changing by using debug commandsand inserting instructions in your program.
Detailed information about using ladder programming as well as examples are availableby selecting Help/LadderPlus in H-Designer
Question: What is PWS6560S-S mebrane keyboard HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
