6AV6643-0BA01-1AX1 Siemens OP277 Membrane Keypad Replacement

6AV6643-0BA01-1AX1 Siemens OP277 Membrane Keypad Replacement

6AV6643-0BA01-1AX1 Siemens OP277 Membrane Keypad Replacement
6AV6643-0BA01-1AX1 Siemens OP277 Membrane Keypad Replacement6AV6643-0BA01-1AX1 Siemens OP277 Membrane Keypad Replacement6AV6643-0BA01-1AX1 Siemens OP277 Membrane Keypad Replacement6AV6643-0BA01-1AX1 Siemens OP277 Membrane Keypad Replacement6AV6643-0BA01-1AX1 Siemens OP277 Membrane Keypad Replacement
CategoriesOparator Panel
BrandVICPAS
Model6AV6643-0BA01-1AX1
BrandSiemens
Warranty6 Months
Product LineSiemens OP277 Operator Panel
SupplySIMATIC HMI OP277 Repair Kit
size5.7 inch
model6AV6643-0BA01-1AX1
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, T/T ,Credit Card, Western Union
Update TimeOct 31,2024
Detail Information

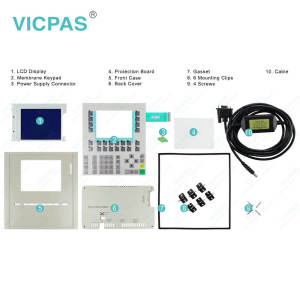

6AV6643-0BA01-1AX1 Siemens SIMATIC HMI OP 277 OPERATOR PANEL Membrane Keyboard, Display, Screws, Power Supply Connector, Case Gasket, LCD Gasket, Mounting Clips, Protection Board and Plastic Case Shell

Order each part separately is available


 6AV6643-0BA01-1AX1 Siemens SIMATIC HMI OP 277 OPERATOR PANEL Membrane Keyboard, Display, Case Gasket, LCD Gasket, Mounting Clips, Screws, Protection Panel, Power Supply Connector and Plastic Case Shell Repair Replacement

6AV6643-0BA01-1AX1 SIMATIC OP 277 6" OPERATOR PANEL 5,7" TFTDISPLAY 4 MB PROJEKTIERUNGSSPEICHER,PROJEKTIERBAR MIT WINCC FLEXIBLE 2005STANDARD SP1


The HMI devices OP 277 represent a further stage of development of the HMI devices OP 270-6. The mounting options and the functional scope of the OP 277 are compatible with the HMI devices in the 270 series.


The TP 277 and OP 277 also have the following features:
• The HMI devices can be operated on PROFINET via the Ethernet port.
• The HMI devices feature a TFT screen with 256 colors.
• The use of projects with scripts and logs is supported.

VICPAS supply 6AV6643-0BA01-1AX1 Siemens OP277 membrane keyboard, Mounting Clips, Screws, Protection Board, Power Supply Connector, Case Gasket, LCD Gasket, LCD Display and Housing with 6 months warranty and support Urgent Worldwide Shipping.





Specifications:

The table below describes the parameters of the 6AV6643-0BA01-1AX1 Siemens OP277 HMI Parts.

Part Number: 6AV6643-0BA01-1AX1
Screen diagonal: 5.7 in
Operating options: Keys
Warranty: 6-Months Warranty
Product Line: Siemens OP277
Digital outputs: 16
Number of colors : 256
Resolution: 320 * 240
MTBF backlighting: 60,000 hours
Design of display: TFT display


Related Siemens OP277 Part No. :

Siemens OP277 Keypad Description Inventory status
6AV6643-0BA01-1AX0 OP 277 6" In Stock
6AV6643-7BA00-0CJ0 OP 277 6" In Stock
6AV6643-7BA00-0CJ1 OP 277 6" In Stock
6AV6643-0BA01-1AX1 OP277-6 In Stock
6AG1643-0BA01-4AX1 SIPLUS HMI OP277 6 In Stock
Siemens OP277 Part No. Description Inventory status


Siemens OP277 series HMI Manuals PDF Download:

  • 6AV6643-0BA01-1AX1 SIMATIC HMI OP277 datasheet pdf
  • Siemens Simatic OP277 HMI operator panel keypad manual


  • FAQ:

    Question:How to Mount the SIMATIC HMI OP277 Device?

    Answer:All packaging components and protective foil should be removed from the HMI device.You need the mounting clamps from the accessories kit for the installation. The mountingseal must be available on the HMI device. If the mounting seal is damaged, order areplacement seal. The mounting seal is part of the associated service pack.


    Question: What is the dimension of 6AV6643-0BA01-1AX1 Siemens OP277 membrane switch??

    Answer:The dimension of Siemens OP277 is 5.7 inch.


    Question: What is the 6AV6643-0BA01-1AX1 Siemens OP277 mebrane switch ,shell and other HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.
