6AV3627-1NK00-2AX0 Siemens SIMATIC HMI TP27 6" Touchscreen
6AV3627-1NK00-2AX0 Siemens SIMATIC HMI TP27 6 Touch Screen Panel, Overlay and LCD Display Repair Replacement
6AV3627-1NK00-2AX0 TOUCH PANEL TP27-6 6" STN MONOCHROME LC DISPLAY PCMCIA, 1 MB FLASH-EPROM
The Touch Panels TP27have standard keyboards. The device isoperated intuitively by touching configured buttons and input fields on thetouch–sensitive screen, referred to in this manual as the “touch screen”.
The TP27 can be supplied in a range of variations. One variant is equippedwith a 6 inch display, available as monochrome and color versions. Thisvariant is subsequently referred to as TP27-6.The second variant is the TP27, equipped with a 10 inch, color display. Thisvariant is subsequently referred to as TP27-10.

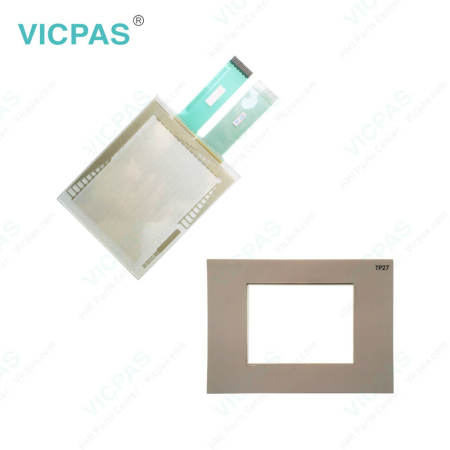

VICPAS supply 6AV3627-1NK00-2AX0 Siemens TP27 6 touch panel, Overlay and LCD display. All of them with VICPAS 365 days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the 6AV3627-1NK00-2AX0 Siemens TP27 HMI Parts.
| Part Number : | 6AV3627-1NK00-2AX0 |
| Touchscreen: | colour LCD display |
| Display | STN-LCD dynamic color screen |
| Warranty: | 365 days Warranty |
| Product Line: | Siemens TP27-6 |
| Active power input, typ.: | 12 W |
| Mounting position: | vertical |
| Key Features: | Touch screen support |
| Language: | Worldwide |
| Type of supply voltage | DC |
Related Simatic TP27 Part No. :
| Siemens TP27-6 | Description | Inventory status |
| 6AV3627-1NK00-2AX0 | TP27-6 TOUCH PANEL | In Stock |
| 6AV3627-1QK00-2AX0 | TP27-6 TOUCH PANEL | In Stock |
| 6AV3627-1NK00-0AX0 | TP27-6 TOUCH PANEL | In Stock |
| 6AV3627-1QK00-0AX0 | TP27-6 TOUCH PANEL | In Stock |
| SIMATIC HMI TP27-6 | Description | Inventory status |
Siemens TP27 HMI Manuals PDF Download:
FAQ:
Question: What can Siemens TP27 6 be used?
Answer:The Touch Panel can be used to:
● control and monitor the process by means of the menu system. In this way,setpoints can be entered in the form of values or by touching configuredbuttons, for example, or control positioning elements;
● display processes, machines and systems on full–graphic and semi–graphicscreens;
● visualize event messages and alarm messages, in addition to processvariables such as an output field, bar graph, trends or status display;
● visualize event messages and alarm messages, in addition to processintervene directly in the operation by means of the touch–sensitive screen.
Question: Which software options are available for the Siemens TP27?
Answer:WinCC Flexible/Sm@rtServiceThe Sm@rtService option enables you to access a remote HMI device from theHMI device or PC via Ethernet.
Question: What is the dimensions of Siemens TP27 touch panel??
Answer:The Siemens TP27 TouchScreen is 5.7-inch.It is 147 millimeter long and 117 millimeters wide.
Question: What is the 6AV3627-1NK00-2AX0 Siemens TP27 HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Common misspellings:
6V3627-1NK00-2AX06A3627-1NK00-2AX0
6AV627-1NK00-2AX0
6AV327-1NK00-2AX0
